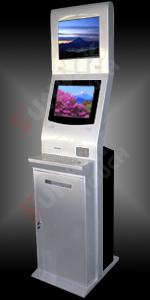

IS-3512M

SUNWAY IS-3512M-Dual

Housing:
- Dual Display - Removable Upper Display
- Display area :
15", 17", 19"
- Material : Full Steel with Metal Powder Coated
- Body Size :
50 x 55 x 195cm (W x D x H)
- Weight :
70kgz
- Color : Silver or your choose
- Audio : 5W +5W with volume controlz
Monitor:
- Open frame Monitor
Touch Kit:
- Infrared type with Strengthened Glass (Options: 5 Wire Resistive and Capacitive Type)
Computer:
- PC is provided according to requirement
Other options:

- Auto-Loop Advertising Player for Upper Display
- Thermal or Dot Matrix Printer
- Video Conferencing
- Magnetic Card Reader
- Smart Card Reader
- Keypad, Keyboard, Track Ball …

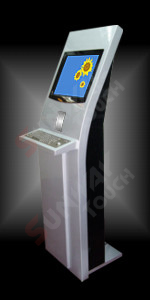

IS-3512

SUNWAY IS-3512 Kiosk

Housing:
- Display area: 15”, 17", 19"
- Material:
Full Steel with Metal Powder Coated
- Body Size: 47 x 50 x 160cm (W x D x H)
- Weight: 48 kg
- Color: Gray Silver + Black or your choose
- Audio: 5W + 5W with volume control
Monitor:
- Open frame Monitor
Touch Kit:
- Infrared type with Strengthened Glass (Options: 5 Wire Resistive and Capacitive Type)
Computer:
- PC is provided according to requirement
Other options:

- Thermal or Dot Matrix Printer
- Video Conferencing
- Magnetic Card Reader
- Smart Card Reader
- Keypad, Keyboard, Track Ball …

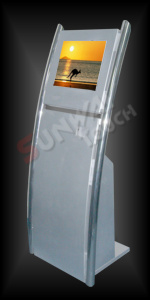

IS-3030

SUNWAY IS-3030 Kiosk

Housing:
- Display area: 15”, 17", 19"
- Material: Full Steel with Metal Powder Coated + Stainless Steel Side Holder
- Body Size: 54 x 40 x 145cm (W x L x H)
- Weight: 28 kg
- Color: Gray Silver
or your choose
- Audio: optional
Monitor:
- Open frame Monitor
Touch Kit:
- Infrared type with Strengthened Glass (Options: 5 Wire Resistive and Capacitive Type)
Computer:
- PC is provided according to requirement
Other options:

- Video Conferencing
- Magnetic Card Reader
- Smart Card Reader

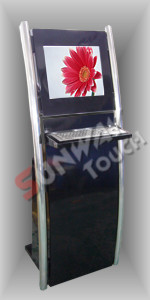

IS-3030MKB
IS-3030MKB

SUNWAY IS-3030MKB Kiosk

Housing:
- Display area: 15”, 17", 19"
- Material: Full Steel with Metal Powder Coated + Stainless steel Side Holder
- Body Size: 54 x 46 x 146cm (W x L x H)
- Weight: 28 kg
- Color: Gray Silver
or your choose
- Audio: optional
Monitor:
- Open frame Monitor
Touch Kit:
- Infrared type with Strengthened Glass (Options: 5 Wire Resistive and Capacitive Type)
Computer:
- PC is provided according to requirement
Other options:

- Video Conferencing
- Magnetic Card Reader
- Smart Card Reader

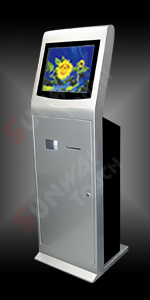

IS-3510M

SUNWAY IS-3510M Kiosk

Housing:
- Display area : 15”, 17", 19"
- Material : Full Steel with Metal Powder Coated
- Body Size : 47 x 46 x 143 cm (W x L x H)
- Weight : 35kg
- Color : Silver or your choose
- Audio : 5W +5W with volume control
Monitor:
- Open frame Monitor
Touch Kit:
- Infrared type with Strengthened Glass (Options: 5 Wire Resistive and Capacitive Type)
Computer:
- PC is provided according to requirement
Other options:

- Thermal or Dot Matrix Printer
- Video Conferencing
- Magnetic Card Reader
- Smart Card Reader



IS-3035M

SUNWAY IS-3035M

Housing:
- Display area: 15”, 17", 19"
- Material: Full Steel with Metal Powder Coated
- Body Size: 45 x 47 x 130 or 147cm (W x L x H)
- Weight: 45 kg
- Color: Gray Silver
or your choose
- Audio: 5W +5W with volume control
Monitor:
- Open frame Monitor
Touch Kit:
- Infrared type with Strengthened Glass (Options: 5 Wire Resistive and Capacitive Type)
Computer:
- PC is provided according to requirement
Other options:

- Video Conferencing
- Magnetic Card Reader
- Smart Card Reader

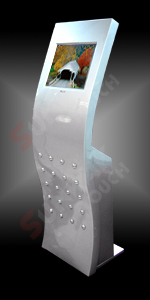

IS-3039

SUNWAY IS-3039 Kiosk

Housing:
- Display area: 15", 17", 19"
- Material:
Full Steel with Metal Powder Coated
- Body Size: ---
- Weight:42 kg
- Color: Gray Silver + Black or your choose
- Audio:5W + 5W
Monitor:
- Open frame Monitor
Touch Kit:
- Infrared type with Strengthened Glass (Options: 5 Wire Resistive and Capacitive Type)
Computer:
- PC is provided according to requirement
Other options:

- Video Conferencing
- Magnetic Card Reader
- Smart Card Reader

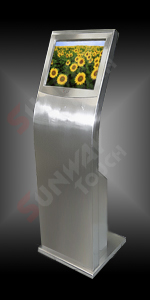

IS-3035M-SS

SUNWAY IS-3035M-SS Kiosk

Housing:
- Display area: 15”, 17"
- Material: Full Stainless Steel with Brushed Surface
- Body Size: 45 x 47 x 130 or 147cm (W x L x H)
- Weight: 35kg
- Color: Gray Silver
or your choose
- Audio: 5W +5W with volume control
Monitor:
- Open frame Monitor
Touch Kit:
- Infrared type with Strengthened Glass (Options: 5 Wire Resistive and Capacitive Type)
Computer:
- PC is provided according to requirement
Other options:

- Video Conferencing
- Magnetic Card Reader
- Smart Card Reader

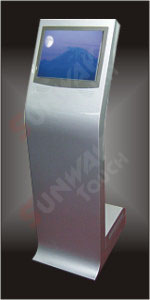

IS-3035

SUNWAY IS-3035 Kiosk

Housing:
- Display area: 15”, 17", 19"
- Material: Full Steel with Metal Powder Coated
- Body Size: 47 x 44 x 145cm (W x L x H)
- Weight: 40kg
- Color: Gray Silver
or your choose
- Audio: 5W +5W with volume control
Monitor:
- Open frame Monitor
Touch Kit:
- Infrared type with Strengthened Glass (Options: 5 Wire Resistive and Capacitive Type)
Computer:
- PC is provided according to requirement
Other options:
- Video Conferencing
- Magnetic Card Reader
- Smart Card Reader


IS-3036

SUNWAY IS-3036 Kiosk

Housing:
- Display area: 15”, 17", 19"
- Material: Full Steel with Metal Powder Coated
- Body Size: 45 x 51 x 138 cm (W x L x H)
- Weight: 35kg
- Color: Light Blue + Silver
or your choose
- Audio: 5W +5W with volume control
Monitor:
- Open frame Monitor
Touch Kit:
- Infrared type with Strengthened Glass (Options: 5 Wire Resistive and Capacitive Type)
Computer:
- PC is provided according to requirement
Other options:
- Video Conferencing
- Magnetic Card Reader
- Smart Card Reader

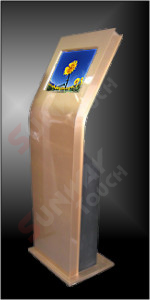

IS-3038

SUNWAY IS-3038 Kiosk

Housing:
- Display area: 15”, 17", 19"
- Material: Full Steel with Metal Powder Coated
- Body Size: (W x L x H)
- Weight:
- Color: Golden
or your choose
- Audio: 5W +5W with volume control

Monitor:
- Open frame Monitor
Touch Kit:
- Infrared type with Strengthened Glass (Options: 5 Wire Resistive and Capacitive Type)
Computer:
- PC is provided according to requirement
Other options:
- Video Conferencing
- Magnetic Card Reader
- Smart Card Reader



IS-3510

SUNWAY IS-3510 Kiosk

Housing:
- Display area: 15”, 17", 19"
- Material: Full Steel with Metal Powder Coated
- Body Size: 47 x 30 x 147 cm (W x L x H)
- Weight: 35kg
- Color: Silver
or your choose
- Audio: 5W +5W with volume control

Monitor:
- Open frame Monitor
Touch Kit:
- Infrared type with Strengthened Glass (Options: 5 Wire Resistive and Capacitive Type)
Computer:
- PC is provided according to requirement
Other options:
- Thermal or Dot Matrix Printer
- Video Conferencing
- Magnetic Card Reader
- Smart Card Reader

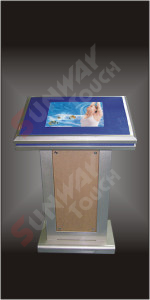

IS-6510

SUNWAY IS-6510 Kiosk

Housing:
- Display area: 15”, 17", 19"
- Material: Full Steel with Metal Powder Coated
- Body Size: 70 x 48 x 110cm (W x L x H)
- Weight: 35kg
- Color:
- Audio: 5W +5W with volume control

Monitor:
- Open frame Monitor
Touch Kit:
- Infrared type with Strengthened Glass (Options: 5 Wire Resistive and Capacitive Type)
Computer:
- PC is provided according to requirement
Other options:
- Video Conferencing
- Magnetic Card Reader
- Smart Card Reader


Touch Screen Specification
Touch Kit Infrared Type Touch Screen:

- Mechanical: Metal Frame with 3 ~ 5mm Strengthened Glass
- Interface: USB or USB
- Surface Hardness: 9H
- Transparency: > 95%
- Touching Life: 60,000,000 Times
- Response Time: < 16ms
- Operating Force: No pressure requested
- Input Method: Finger, Stylus Pen or any object diameter > 5mm
- OS Support: Window 9x ~ Vista, Linux, MS-DOS

Top



Touch Kit 5 Wires Touch Kit:

- Type: 5 Wire Resistive Type
- Mechanical: ITO Film (Indium Tin Oxide) to Glass
- Interface: USB 1.1
- Surface Hardness: 4H
- Transparency: 85%
- Touching Life: 35,000,000 Times
- Response Time: < 5ms
- Operating Force: 10g ~ 100g
- Controller: USB, RS-232 or PS/2
- Input Method: Finger or Soft Stylus Pen
- OS Support: Window 9x ~ Vista, Linux, iMac OS9, MS-DOS

Top

*Specification and details may change without notice
